Making of...

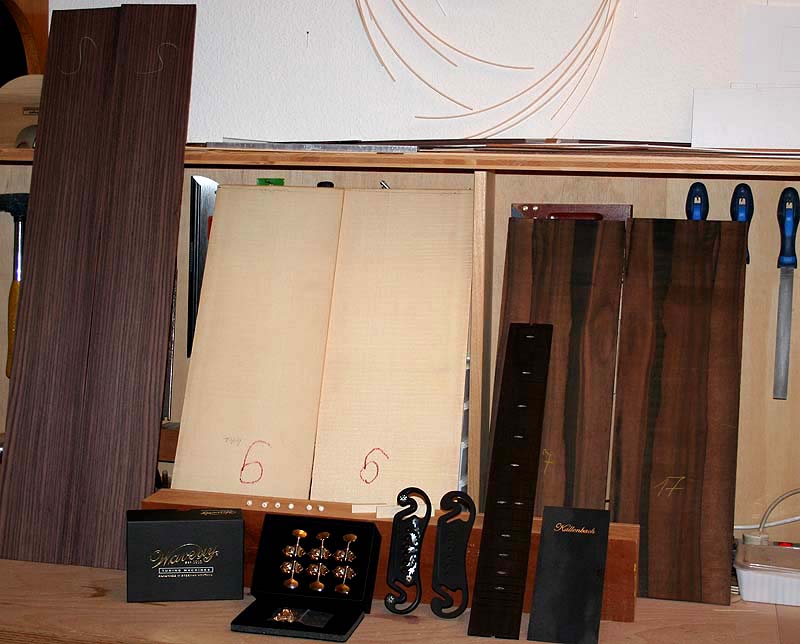

Parts for building a Steelstring Guitar

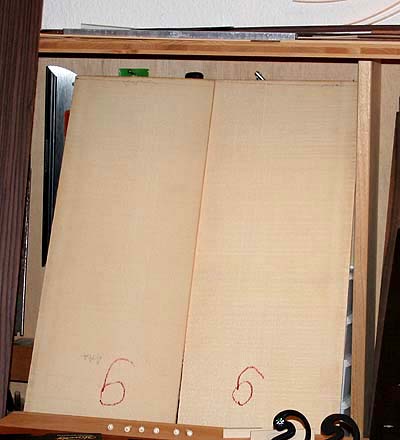

Two Alpine Spruce Parts for the Soundboard (Top)

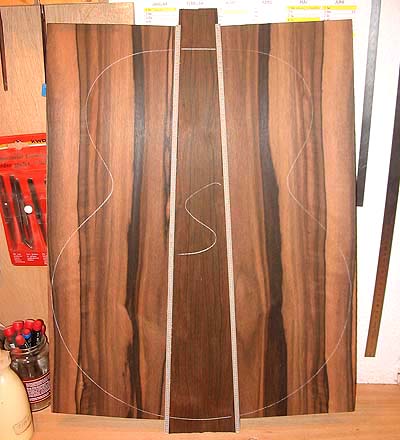

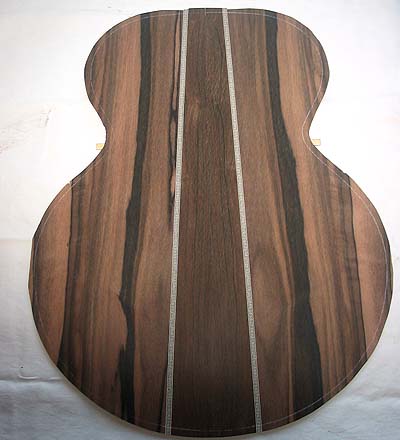

Joined Makassar-Ebony Back

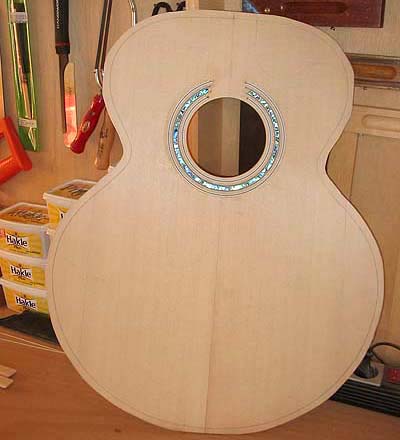

Paua Inlay work in the Soundhole Rosette

Back sanded to proper thickness and trimmed

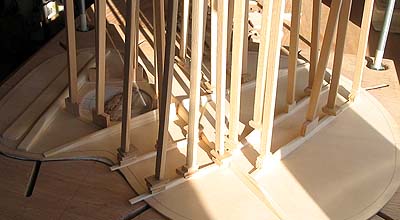

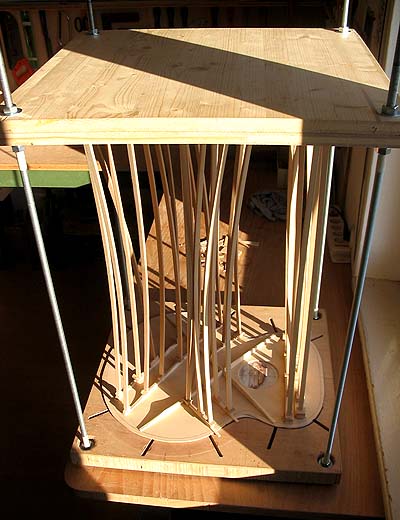

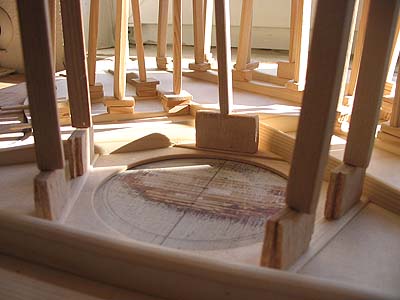

The so called "Four Poster Bed", a glue asisstant

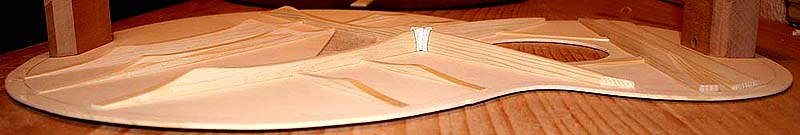

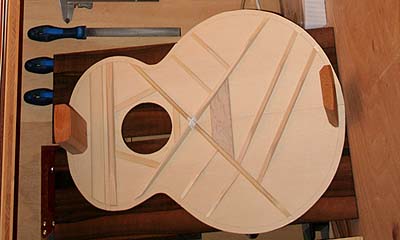

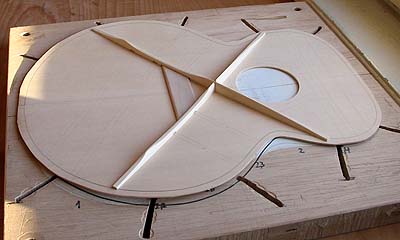

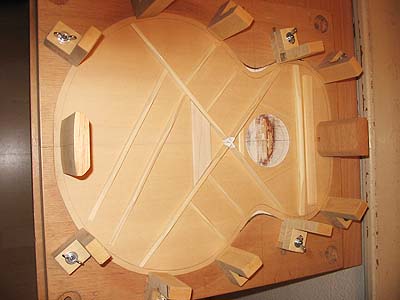

Soundboard with headblock Tailblock and braces. Notice the Pre-War Style Canvas reinforced crosspoint.

6a
6b

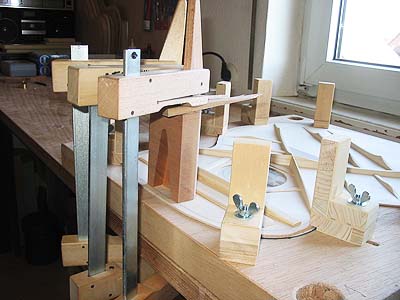

Fixing & glueing the Headblock.

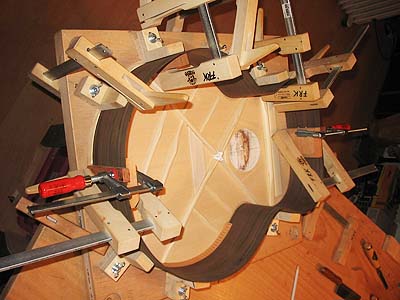

Preperation for installing the curved sides

7a

The installed curved sides

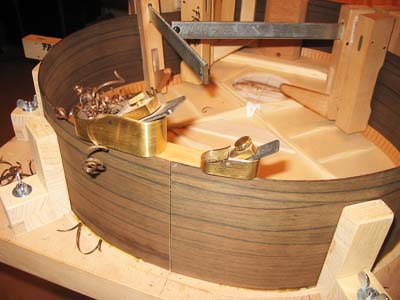

leveling the depth of the body


mounted kerfed linings

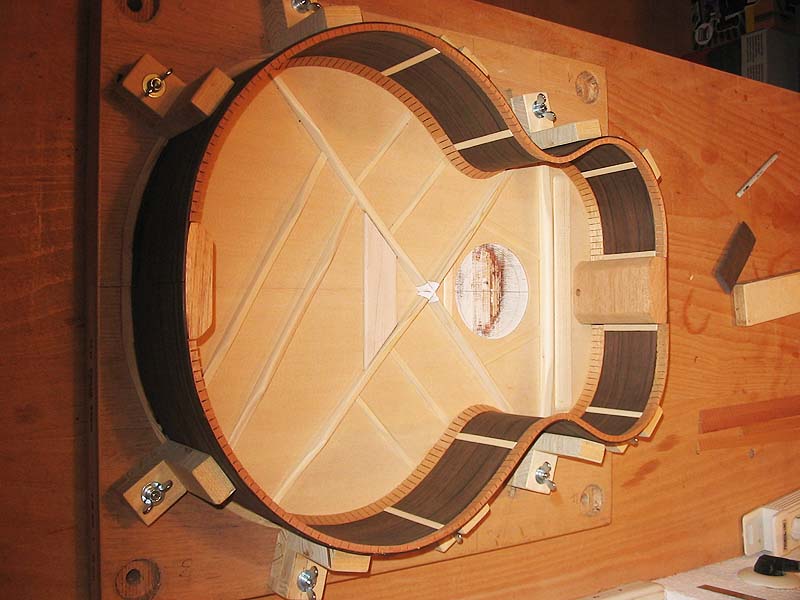

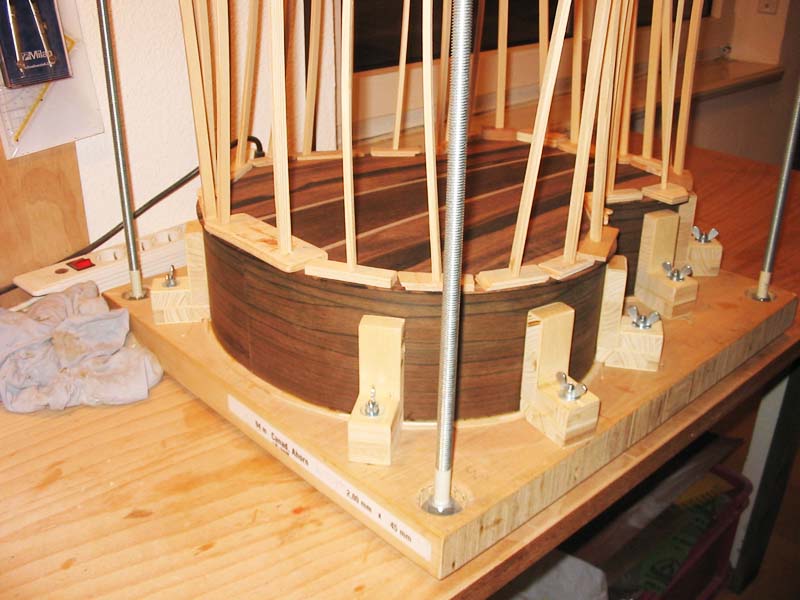

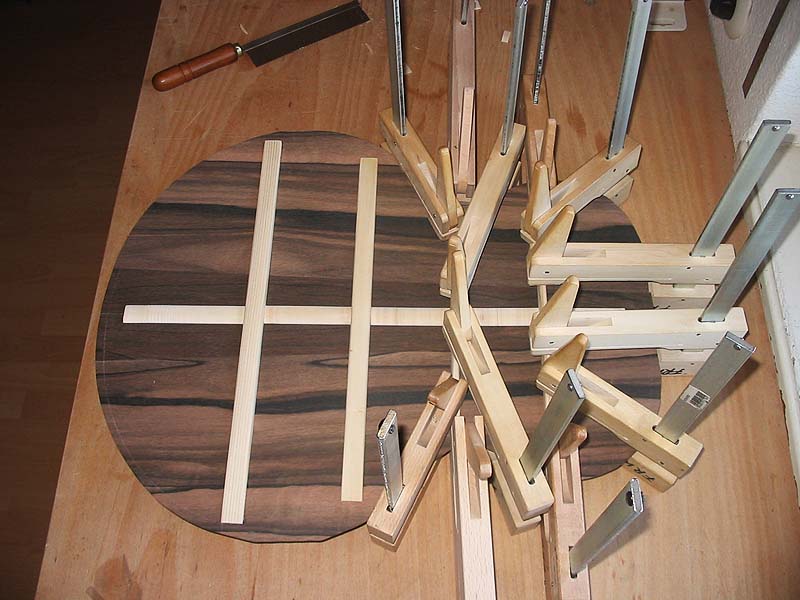

fixing & glueing the back braces

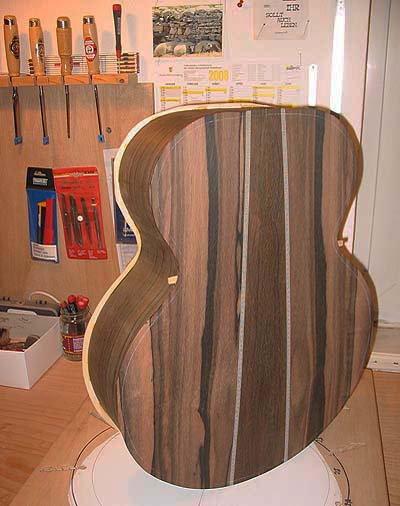

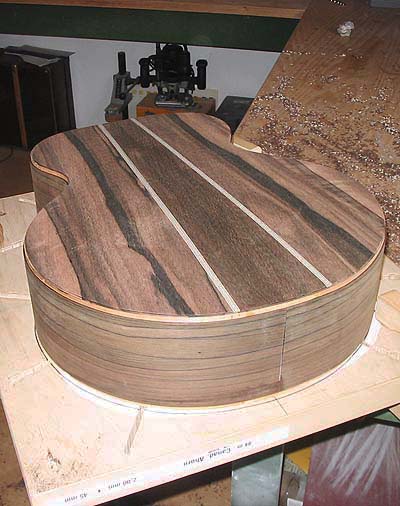

joining the back to the body

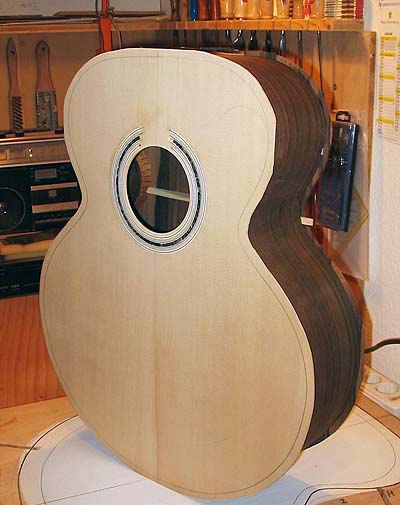

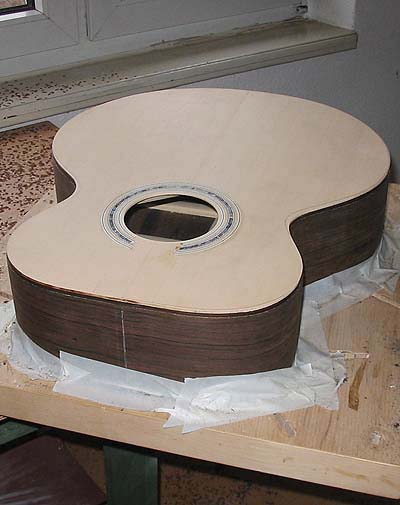

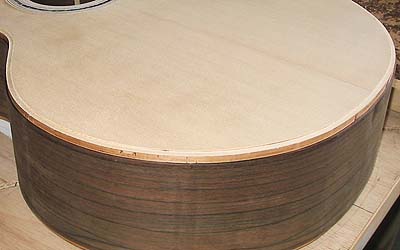

body before routing the binding channels

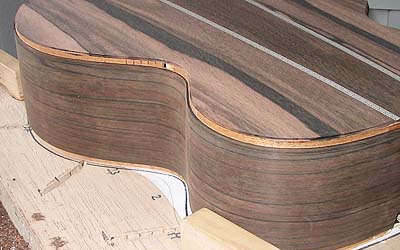

routing work done

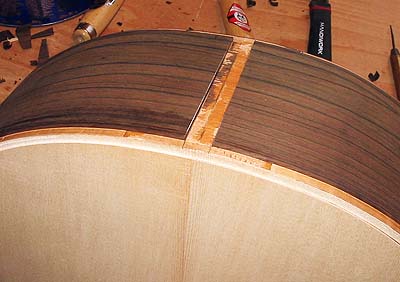

binding channel detail

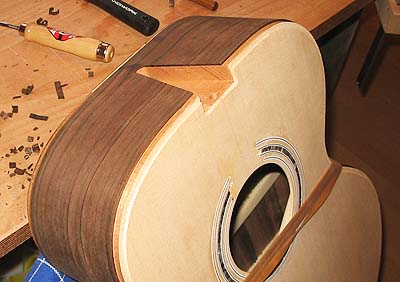

preparing for Neckjoint & Tail inlays

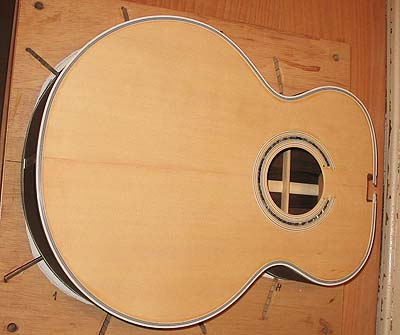

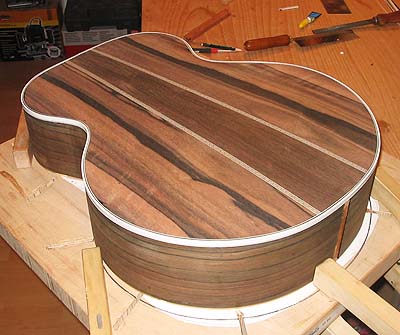

Body bindings

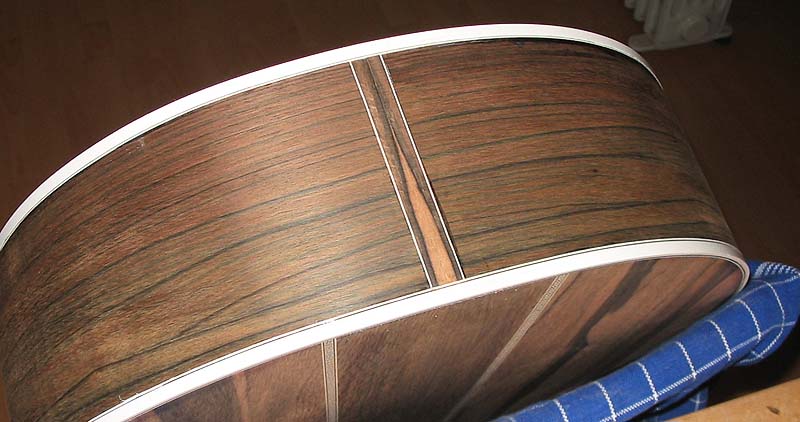

Detail: Tail inlay

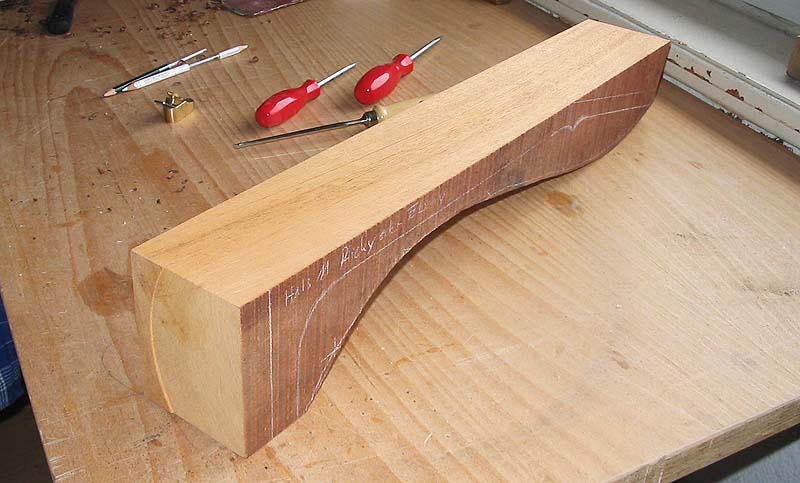

Raw Material for building a One Piece Neck

Genuine Honduras Mahogany

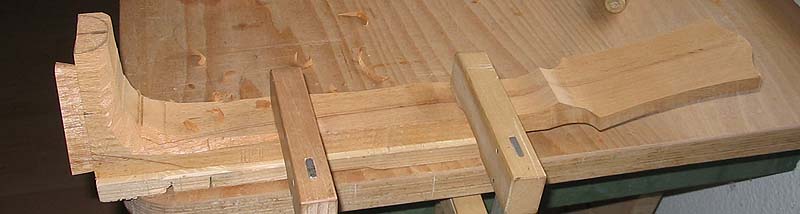

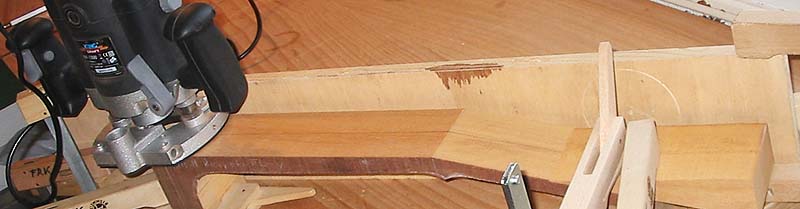

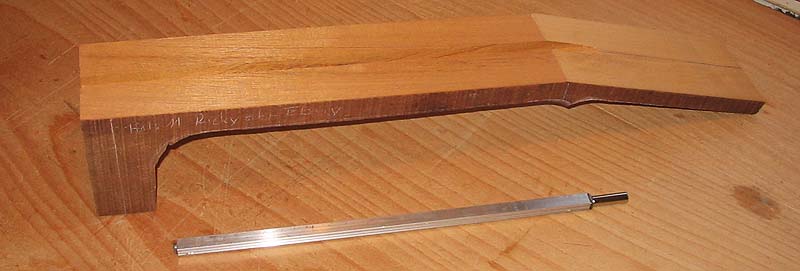

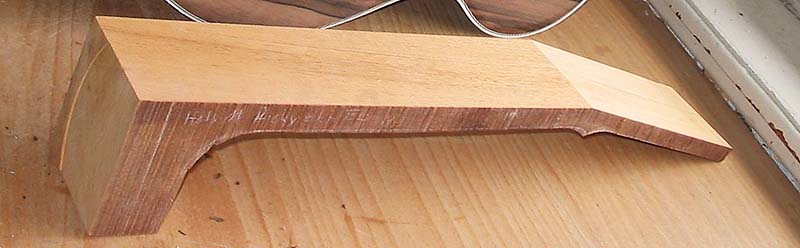

Building the One Piece Neck & routing the Trussrod channel

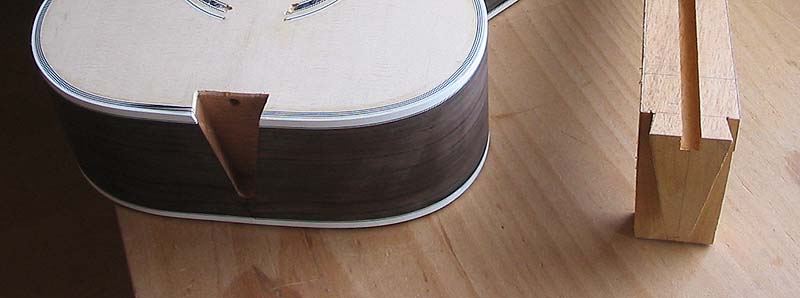

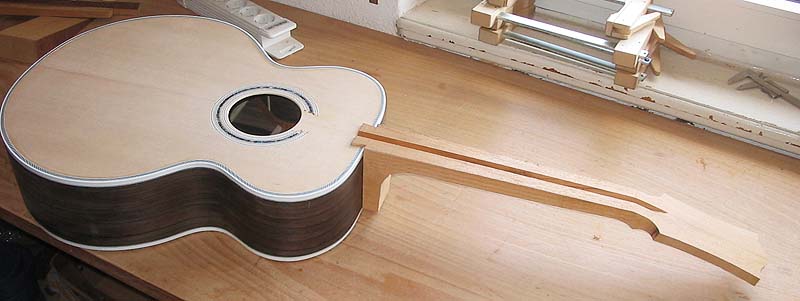

Adjusting the Neckjoint

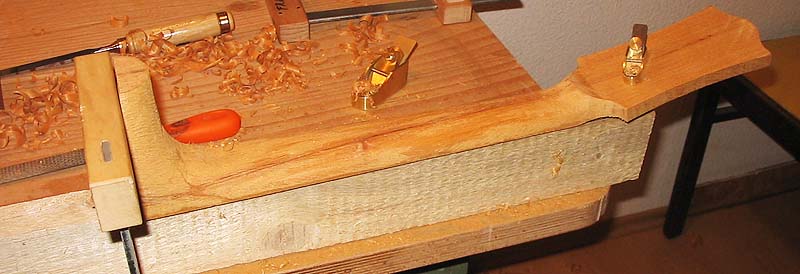

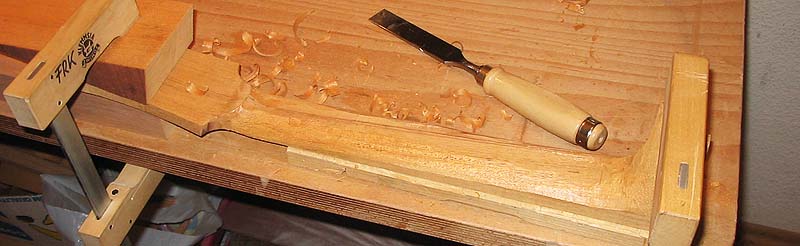

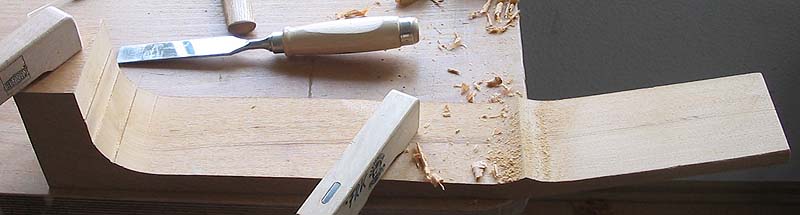

Cutting & Carving the neck

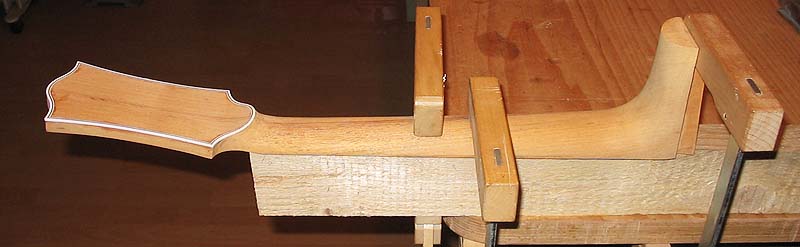

Headstock Binding

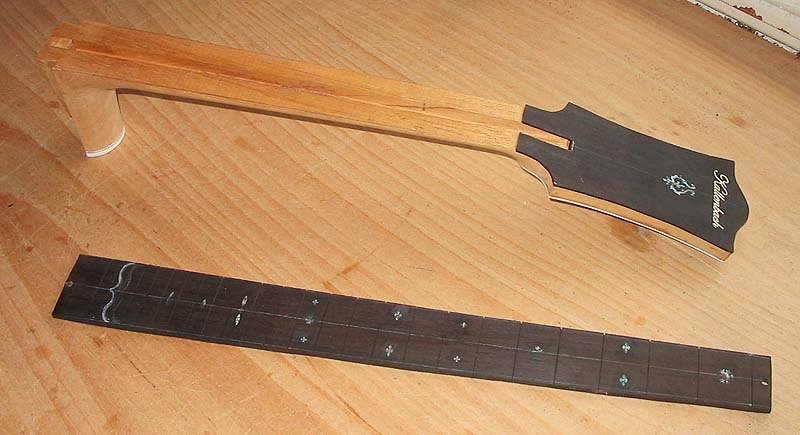

Assembling the neckparts

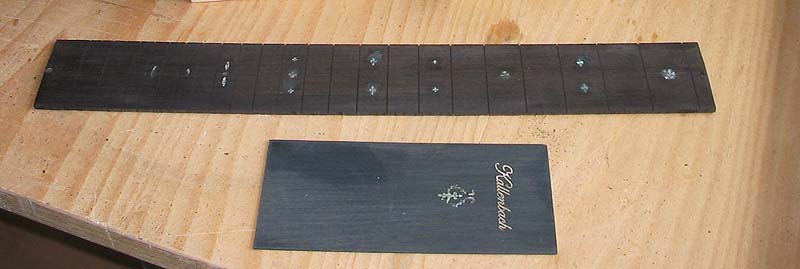

Headstock Veneer & Fretboard Standard:
selected black Ebony

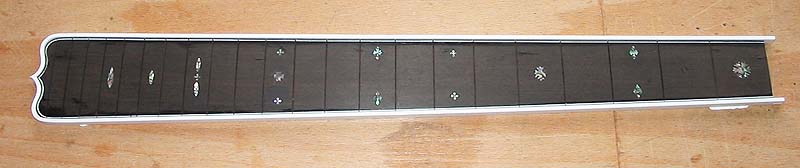

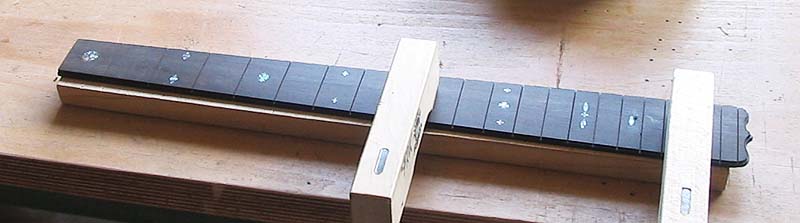

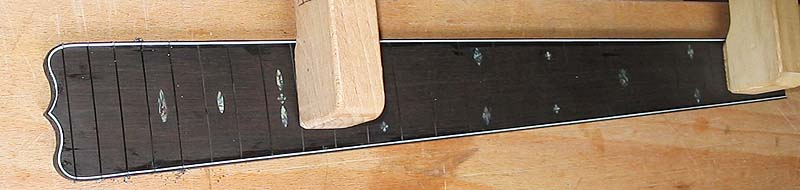

Fretboard binding works

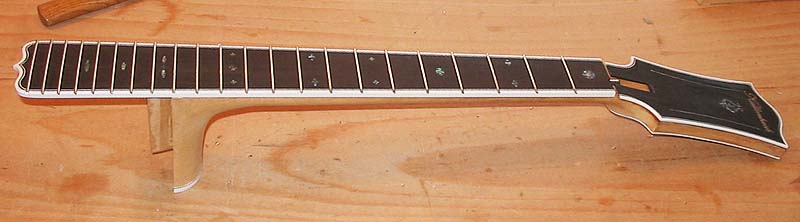

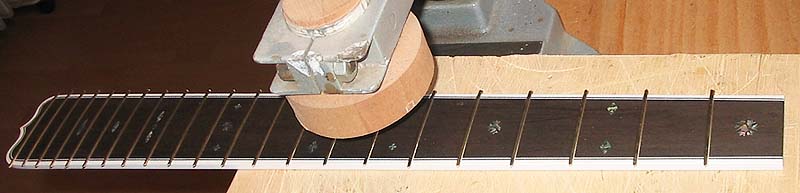

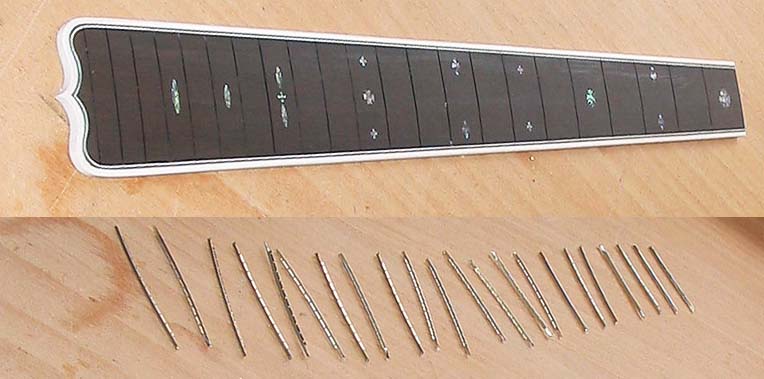

Installing the frets

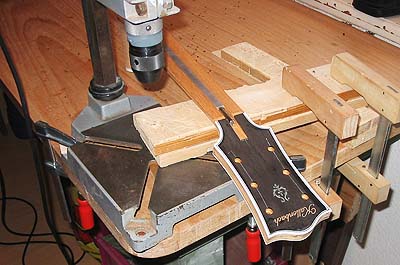

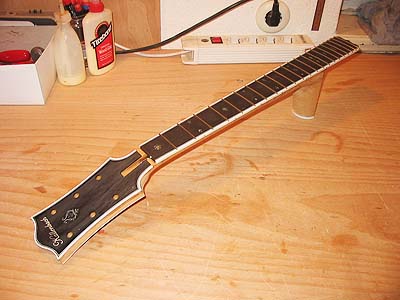

Drilling the tuner holes

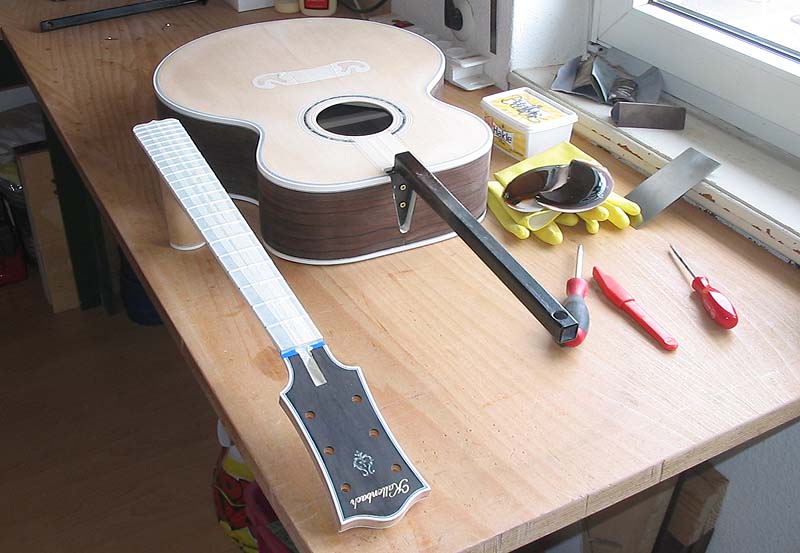

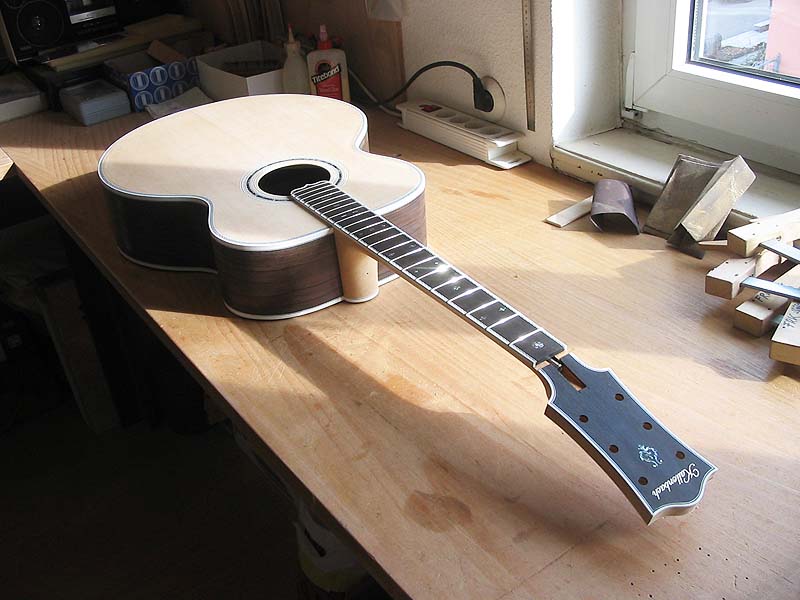

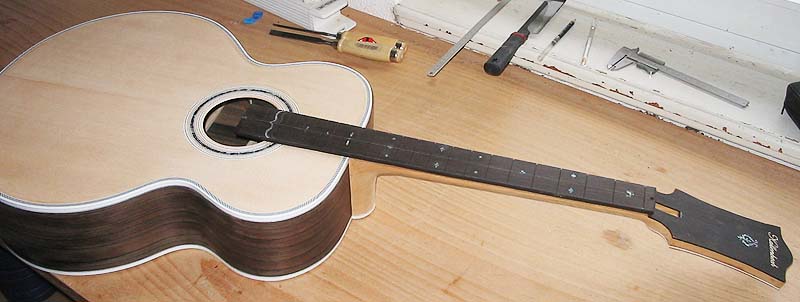

Assembled for final adjustments

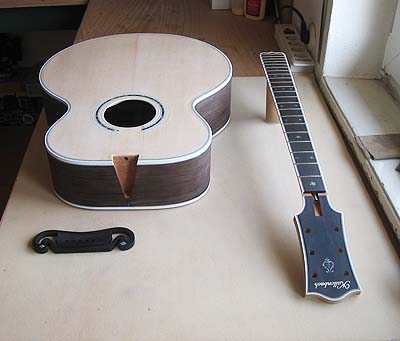

Measuring the Bridge placement

Preparing for laquer finish

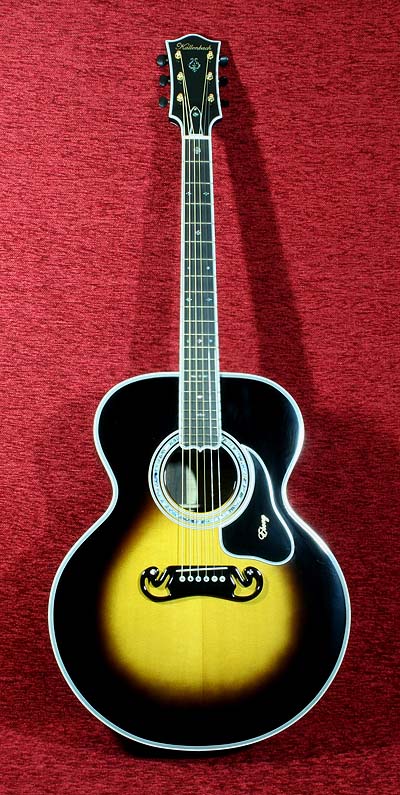

Yeah!
